The Healthcare HL7/EMR ETL Normalization Hub is a secure and scalable Azure-based pipeline that captures, transforms, and loads HL7 v2.x messages from hospital EMR systems into a normalized Azure SQL Managed Instance (SQL MI) database. The solution uses Azure Logic Apps for HL7 ingestion, Python (hl7apy) for parsing and segment-level transformation, and Azure Data Factory (ADF) for orchestration and loading into a relational schema. It supports up to 50,000 messages/day, enforces strong validation, and adheres to HIPAA requirements via Azure security features. The hub improves EMR interoperability and enables unified clinical data access for analytics and reporting.

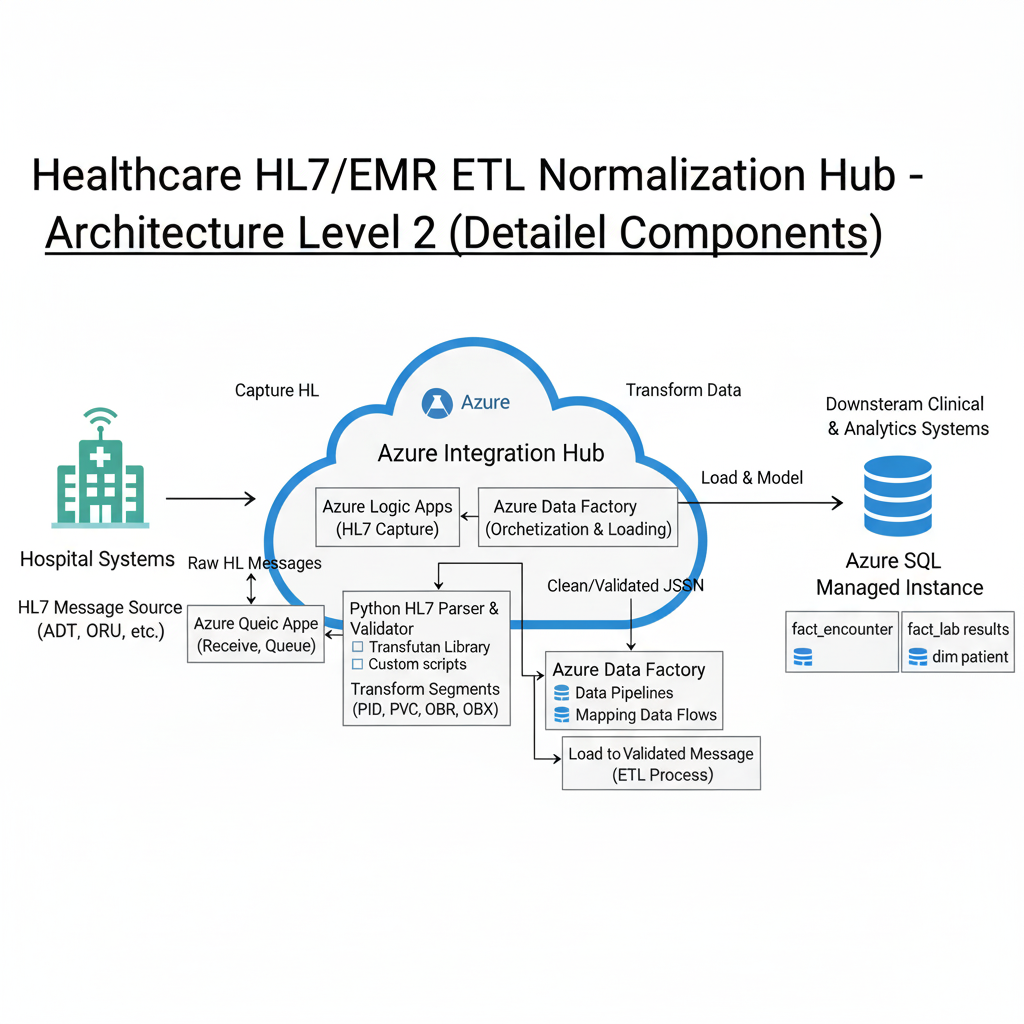

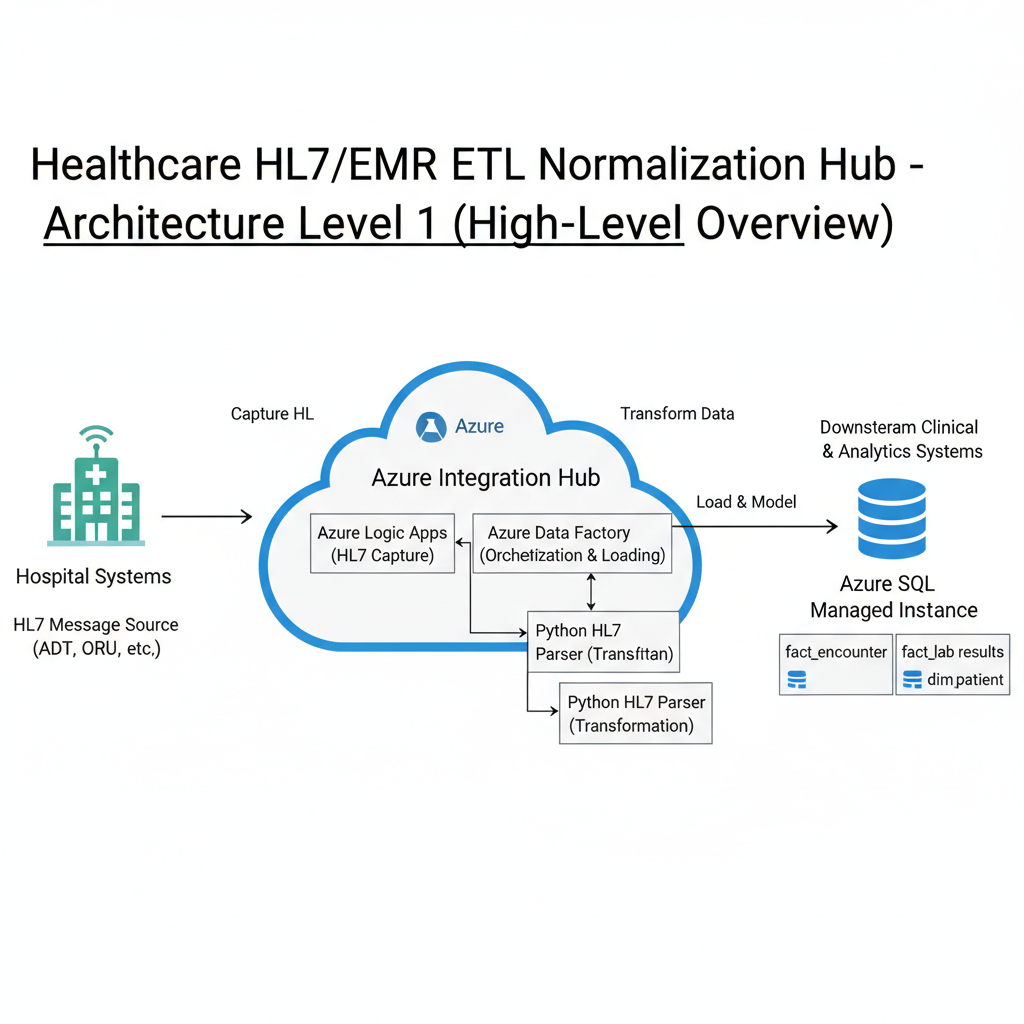

The architecture combines serverless and managed Azure services to reliably process healthcare messages:
Data Sources: Hospital EMR systems sending HL7 v2.x messages (ADT, ORM, ORU, etc.) over TCP/MLLP, SFTP, or APIs.
Ingestion Layer: Azure Logic Apps receive HL7 messages, generate ACKs, and hand off to processing.
Processing Layer: Python-based HL7 parsing (PID, PV1, ORC, OBR, OBX) running via Azure Functions or ADF activities.
Orchestration Layer: Azure Data Factory coordinates extraction, transformation, validation, and bulk load steps.
Storage Layer: Azure SQL Managed Instance holds normalized tables for patients, visits, orders, and observations.
This design provides a robust, compliant backbone for healthcare data integration.
Normalized Relational Schema in SQL MI: Patients table (e.g., PatientID, Name, DOB, identifiers from PID); Visits table linked via PatientID (from PV1 – admissions/encounters); Orders & Observations (ORC, OBR, OBX) as separate tables with foreign keys to patients/visits.
HL7 Segments → SQL Entities: PID (Patient demographics); PV1 (Visit/encounter details); ORC/OBR/OBX (Orders and clinical results). Indexes on PatientID and date fields support efficient querying and analytics.

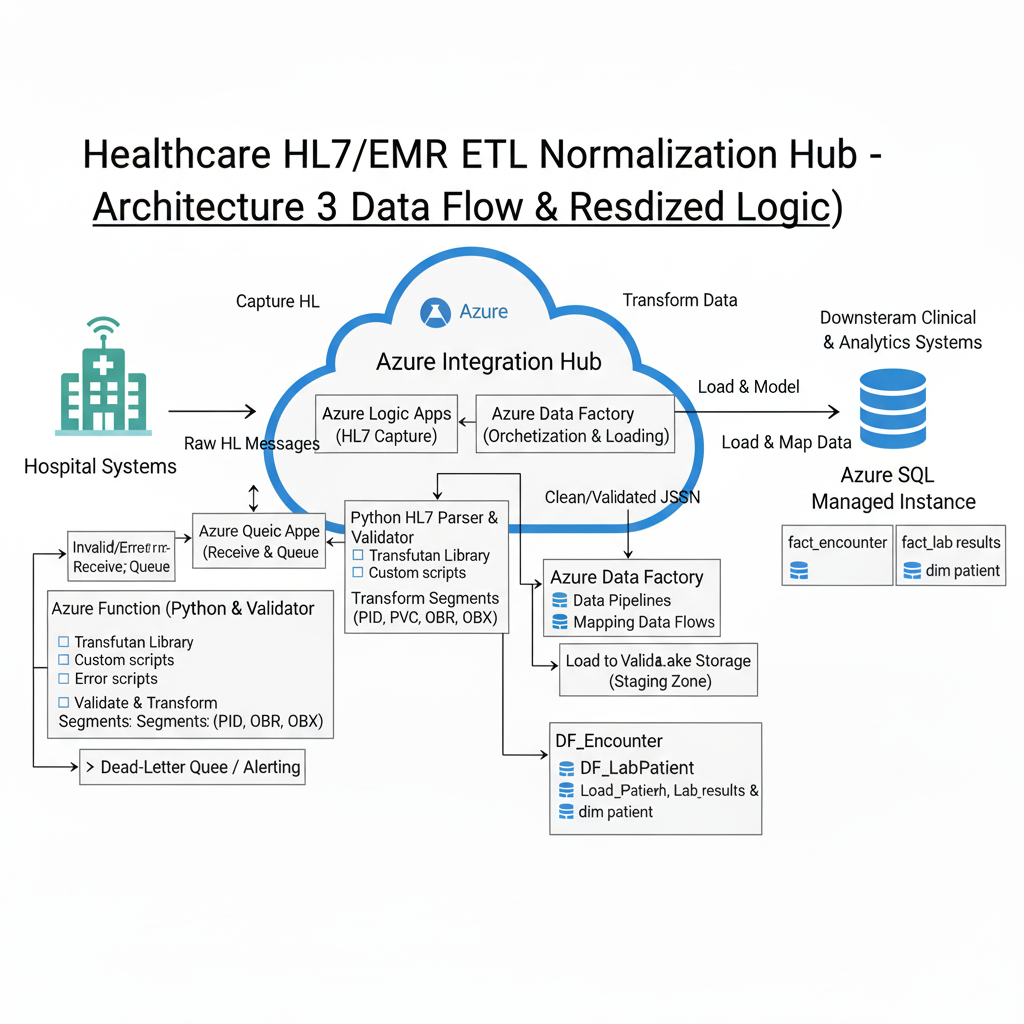

Extract: Logic Apps receive HL7 messages from EMR systems (TCP, SFTP, HTTP). Messages are acknowledged (ACK) and forwarded to ADF or an Azure Function for parsing.
Transform: Python scripts using hl7apy parse HL7 segments. Extracted fields are normalized (date formats, code mappings), and complex cases like repeated OBX segments are handled with segment-aware logic.
Load: ADF pipelines use Mapping Data Flows and Copy activities to bulk load data into SQL MI. MERGE-based upserts provide idempotency and support incremental updates.
Validation & Error Handling: Required field checks; failed messages are routed to error queues / tables with retries, ensuring traceability.
Project Start: February 1, 2025 | Duration: ~7 months (Delivered ahead of schedule)
Testing: Unit Tests with Pytest for HL7 v2.x messages; Integration Tests for end-to-end flows; Performance Tests up to 100k messages/day with < 2 min latency; Validation achieving ~98% match using conformance tools.
Deployment: Infrastructure via ARM templates / IaC; secure rollout with environment separation (dev, test, prod).
Monitoring: Azure Monitor alerts on failures and throughput; dashboards for message volume and latency.
Maintenance: Daily SQL MI backups, quarterly security reviews, and configuration-driven mappings (JSON) to adapt to HL7 variations. Estimated Cost: ~$800/month.
Methodology: Agile with 2-week sprints, including HIPAA risk assessments.
